| 型号 | TQX-060 | TQX-090 | TQX-130 | TQX-220 | TQX-300 | TQX-400 | TQX-500 | TQX-600 | TQX-1000 | |
|
扭矩范围 Nm |
50-600 | 50-900 | 100-1300 | 100-2200 | 100-3000 | 150-4000 | 250-5000 | 350-6000 | 按需 定制 | |
|
驱动方身 A |
3/4" | 1" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | ||
| 转速 rpm | 10 | 8 | 16 | 6.5 | 4.5 | 3.8 | 2 | 3.3 | ||
|

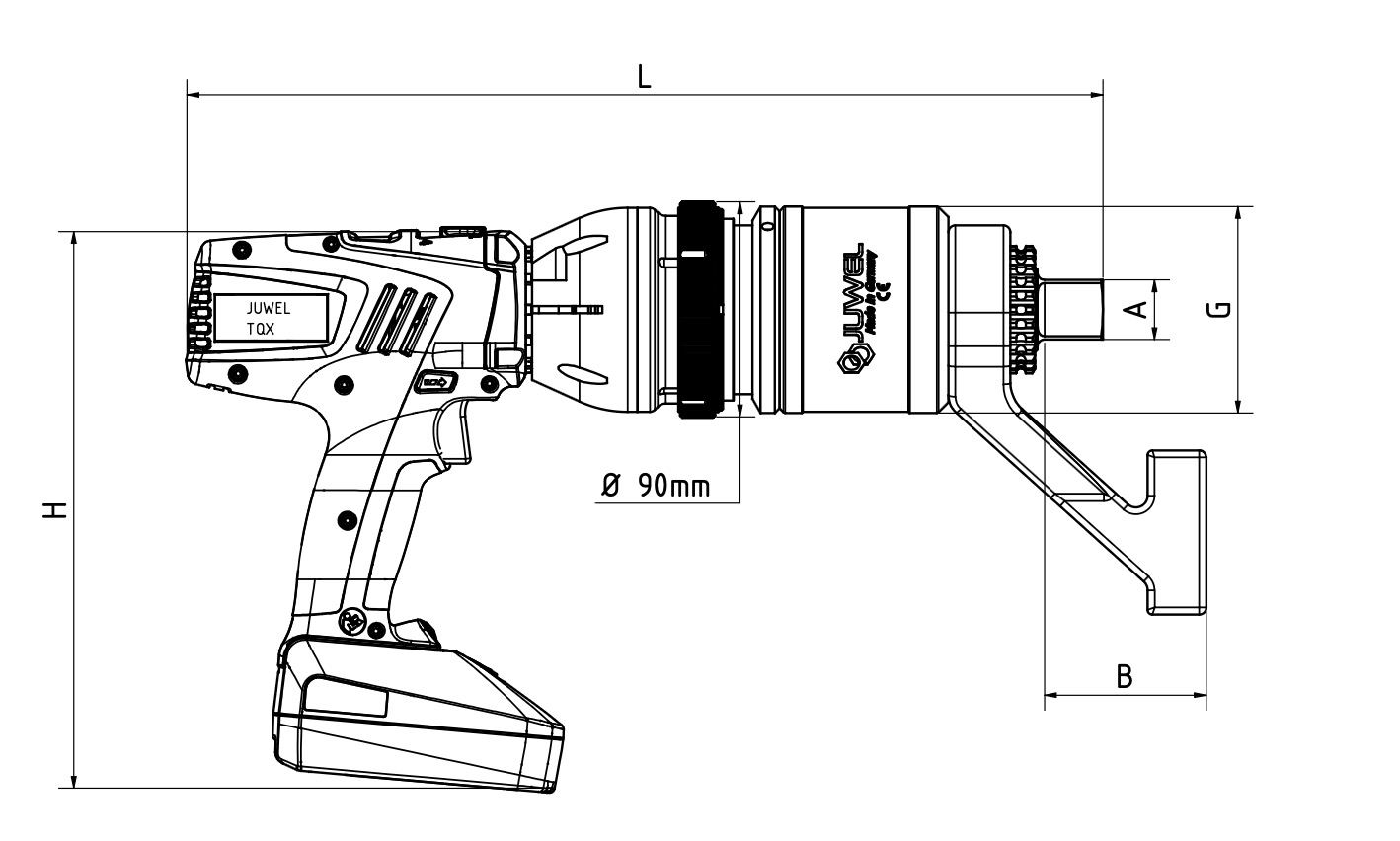

外形尺寸 mm |
G | 75 | 75 | 88 | 88 | 88 | 99 | 99 | 135 | |
| L | 370 | 390 | 415 | 455 | 455 | 470 | 510 | 490 | ||
| B | 55 | 75 | 75 | 75 | 75 | 95 | 95 | 115 | ||
|
重量 kg |
4.25 | 6.3 | 9.1 | 10.8 | 10.8 | 12.6 | 14.1 | 17.6 | ||
