| 型号 | TEWS-105 | TEWS-245 | TEWS-355 | TEWS-505 | TEWS-605 | TEWS-904 | TEWS-1205 | TEWS-1505 | |
|
扭矩范围 Nm |
280-1200 | 360-2500 | 360-3500 | 700-5000 | 810-6000 | 1020-10000 | 1020-12000 | 1450-15000 | |
|
驱动方身 A |
1" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | |
|
转速 rpm |
14 | 10 | 9 | 3 | 6.5 | 2.5 | 2 | 2 | |
|

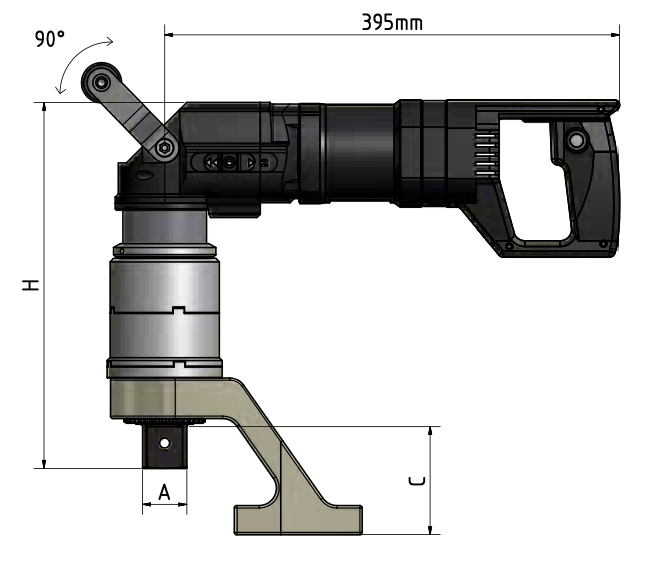

外形尺寸 mm |
D | 99 | 99 | 99 | 99 | 135 | 135 | 172 | 172 |
| H | 275 | 305 | 315 | 365 | 350 | 390 | 400 | 415 | |
| C | 75 | 75 | 95 | 95 | 110 | 110 | 115 | 145 | |
|
重量 kg |
11 | 12.5 | 13.3 | 14.7 | 18.8 | 22.4 | 31 | 38 | |
