| 型号 | TLM-84 | TLM-104 | TLM-105 | TLM-244 | TLM-245 | TLM-354 | TLM-355 | TLM-505 | |
|
扭矩范围 Nm |
40-880 | 400-1200 | 400-1200 | 70-2500 | 70-2500 | 70-4000 | 70-4000 | 100-5000 | |
|
驱动方身 A |
1" | 1" | 1" | 1" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | |
|
转速 rpm |
19 | 19 | 19 | 7.5 | 7.5 | 7.5 | 7.5 | 2 | |
|

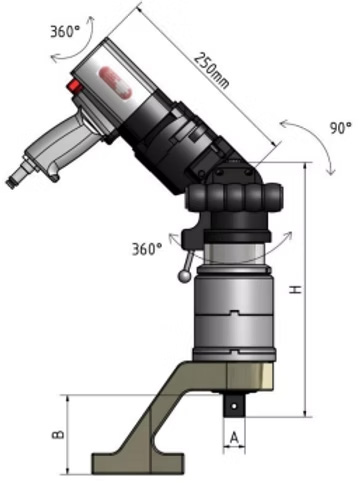

外形尺寸 mm |
D | 88 | 88 | 99 | 88 | 99 | 88 | 99 | 99 |
| H | 270 | 270 | 270 | 300 | 300 | 330 | 330 | 360 | |
| B | 75 | 75 | 75 | 75 | 75 | 95 | 95 | 95 | |
|
重量 kg |
9.5 | 9.5 | 10.5 | 9.5 | 10.5 | 10.5 | 11.5 | 12.6 | |
