| 型号 | TESM-84 | TESM-104 | TESM-105 | TESM-244 | TESM-245 | TESM-354 | TESM-355 | TESM-505 | |
|
扭矩范围 Nm |
150-850 | 280-1200 | 280-1200 | 360-2500 | 360-2500 | 360-3500 | 360-3500 | 700-5000 | |
|
驱动方身 A |
1" | 1" | 1" | 1" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | |
|
转速 rpm |
16 | 14 | 14 | 10 | 10 | 9 | 9 | 3 | |
|

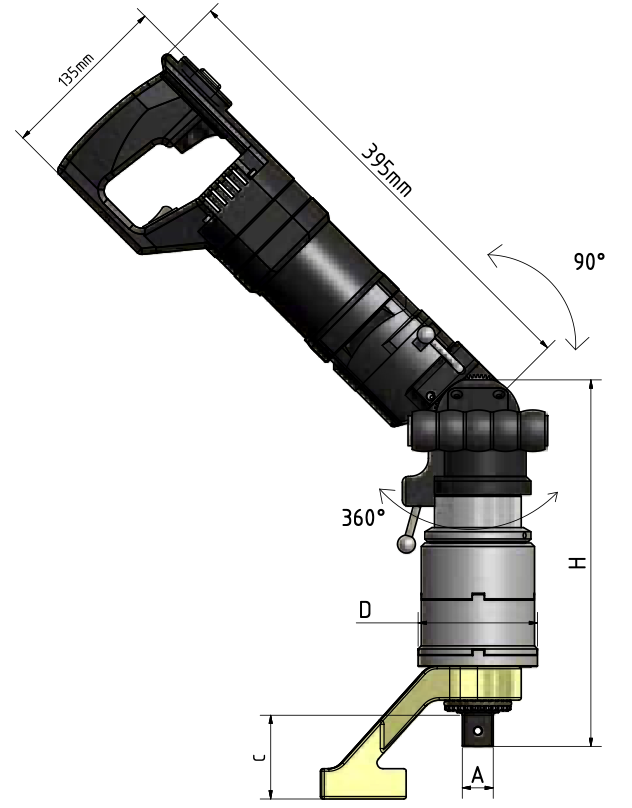

外形尺寸 mm |
D | 88 | 88 | 99 | 88 | 99 | 88 | 99 | 99 |
| H | 275 | 275 | 275 | 305 | 305 | 315 | 315 | 365 | |
| C | 75 | 75 | 75 | 75 | 75 | 95 | 95 | 95 | |
|
重量 kg |
10 | 10 | 11 | 12.5 | 13.5 | 13.4 | 14.5 | 16.7 | |
TESM-105，TESM-245，TESM-355为重型设计。
